1.5mm/60mils landfill HDPE liners for landfill
| Min. Order: | 5000 Square Meter |
|---|
| Packaging: | standard or as per client requirement |
|---|---|
| Productivity: | 30tons/day |
| Brand: | Tianhai |
| Transportation: | Ocean,Land |
| Place of Origin: | China |
| Supply Ability: | 30tons/day |
| Certificate: | TRI/BTTG/TUV/MSDS/SGS/CE/ISO |
| HS Code: | 3920109090 |
| Port: | Qingdao,Tianjin,Shanghai |
Basic Info
Model No.: 1.5mm
Product Description
Product description
HDPE (High Density Polyethylene) is a polyethylene thermoplastic made from petroleum. HDPE is known for its high strength to density ratio with exceptional chemical and ultraviolet resistant properties. With HDPE being resistant to many solvents, it is used for many applications such as bottle caps, fuel tanks, water pipes and geomembrane.
What is HDPE Geomembrane?
HDPE Geomembrane typically is a 7 meter wide smooth continuos sheet made of HDPE at a thickness of either 1mm, 1.5mm or 2mm.
1.5mm/60mils landfill HDPE liners for landfill
Product High quality HDPE liner film, HDPE geomembrane Standard GM13-smooth Certifitcation CE/ISO/BTTG/TRI Thickness 0.2mm-3.0mm Technology Blowing Width 2m-8m Material HDPE/LDPE/LLDPE Length 50m-100m Original China
1.5mm/60mils landfill HDPE liners for landfill
| Smooth HDPE geomembrane-GM13(ASTM) technical data | |||||||||||
| Properties | Test Method | Test Value | |||||||||
| 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | ||||||
| Thickness (min. ave.)· lowest individual of 10 values | D5199 | nom -10% | nom -10% | nom -10% | nom -10% | nom -10% | nom -10% | ||||
| Density (min.) | D 1505/D 792 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | ||||
| yield strength | D 6693 | 11 kN/m | 15 kN/m | 18 kN/m | 22 kN/m | 29 kN/m | 37 kN/m | ||||
| break strength | 20 kN/m | 27 kN/m | 33 kN/m | 40 kN/m | 53 kN/m | 67 kN/m | |||||
| yield elongation | 12% | ||||||||||
| break elongation | 700% | ||||||||||
| Tear Resistance (min. ave.) | D 1004 | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N | ||||
| Puncture Resistance (min. ave.) | D 4833 | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N | ||||
| Stress Crack Resistance (2) | D 5397 | 300 hr. | |||||||||
| Carbon Black Content - % | D 4218 | 2.0-3.0% | |||||||||
| Oxidative Induction Time (OIT) (min. ave.) |
|
|
|
|
|
|
| ||||
| (a) Standard OIT | D 3895 | 100 min. | |||||||||
| (b) High Pressure OIT | D 5885 | 400 min. | |||||||||
| Oven Aging at 85°C |
|
|
|
|
|
|
| ||||
| (a) Standard OIT (min. ave.) - % retained after 90 days | D 3895 |
55% | |||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 90 days | D 5885 |
80% | |||||||||
| UV Resistance |
|
|
|
|
|
|
| ||||
| High Pressure OIT (min. ave.) - % retained after 1600 hrs | D 5885 |
50% | |||||||||
Packing & Shipping
For geomembrane, in order to avoiding water when shipping on the boat, we specially use a thin layer plast firm to package the geomembane in the side, then white or black woven bags for outside, paper tube inside, easy to install.
Marking our label or as per client request, loading them into container safely at our factory, make all goods arriving clients no damage, keep perfect. They are packed in the woven bags 50m/roll,100m/roll or follow your demand
Shipping: load container directly from our plant by truck, then go to the port, than go your site by sea.
Applications: Features

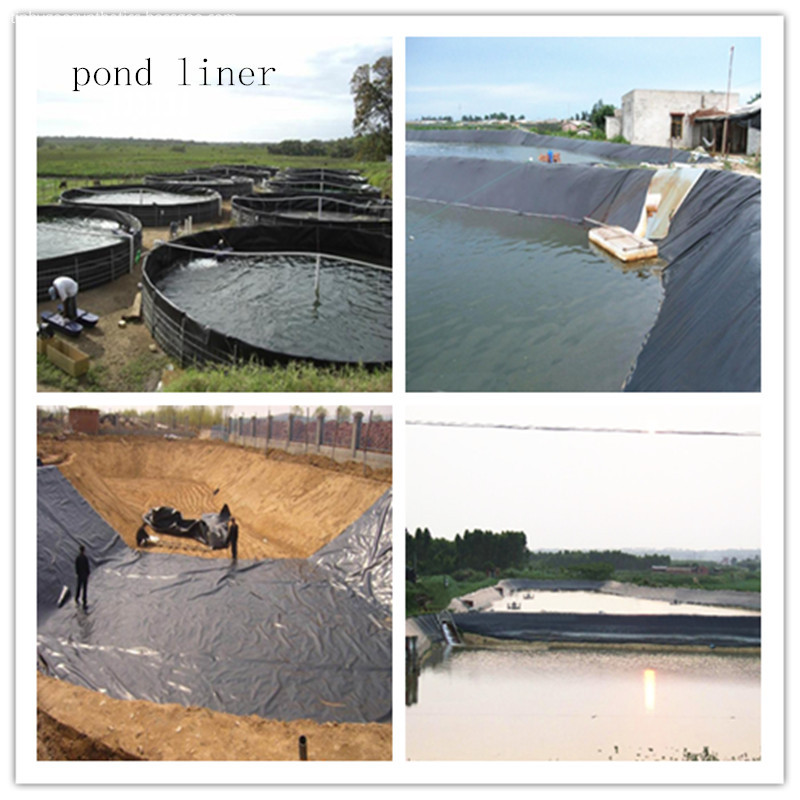

- Irrigation Ponds, Canals, Reservoirs, & Ditches 1,Excellent physical and mechanical performance
- Landfills & Canals 2,High tearing resistance
- Agricultural Applications 3,Good deformation adaptability
- Municipal Applications 4,High puncture resistance
- Aquaculture & Horticulture 5,High aging resistance
- Liners & Covers 6,Good ageing resistance
- Landfill Liners, Covers, & Caps 7,long work life
- Liquid Containment 8,high and low temperature resistance
- Wastewater Lagoon Liners
- Mining-Heap Leach & Slag Tailings
- Liners for Golf Courses & Decorative Ponds
- Potable Water Reservoirs
- Tank Linings
- Brine & Processed Water Applications
- Water & Wastewater Treatment & Containment
Certifications
- CE
- ISO 9001 and ISO1400
- China Famours Brand and other certificates
Company Profile
Shandong Tianhai New Materials is a leading manufacturer and marketer of the world geosynthetics lining products and services.
Specialized in HDPE/LDPE/LLDPE smooth and textured geomembrane, geotextile, drainage sheet, drainage composoite, GCL, self-adhesive waterproofing material, geogrid, with superior quality.
ISO9001, ISO14001, GB/T28001, CE certified .We get MSDS report and special CICC certificate for China railway projects. We are known by USA TRI and England BTTG
Our products had been exported to UK, the Philippines Australia, Italy, Madagascar, Mexico, UZ, Russia,Indonesia,Jordan,Iraq,Afghan,Libya, Sweden, Mongolia, India-
Other Accessories products that you maybe interested in:
Such as 2.0mm welding machine 900, 1.0mm welding machine 800, Welding torch, Satefy Products, Safety helmet, Safety shoes, Falling protection, Eye protection, body protection
FAQ
1.Q: What's about your production capacity?
A: We produce 10 x 40ft container per day for geomembrane.
2.Q: How about your delivery time?
A: Within 7-14 days after deposit, we always deliver the goods according to customer's requirement.
3.Q: What's about the minimum order quantity?
A: The MOQ is 5000m2, customer can mix different sizes in one 20GP. We suggest at least 20GP,as by our exporting experience, 20GP container sea freight is more economic.
4.Q: How about quality guarantee of your tires?
A:1) Material Purchase Control. Our Material are imported from Iran and Saudi Arabia. Those country specializing in better raw material.
2) Advanced production equipment, producing ASTM specification data.
4)We could provide you TRI or BTTG test report if you need.
5.Q: Do you have stock?
A: All tires we send to customers are new tires. We don't have any stock to ensure customers use best new tires and new patterns.
6. Q: Terms of payment
A:1). First time cooperation, we can accept 30% TT deposit, the balance should be paid against copy of B/L within 10 days.
2). By irrevocable LC at sight.
7.Q: What certificates do you have?
A: CE, ISO, SGS, TRI, BTTG, MSDS
Shandong Tianhai New Materials produces any kind of geomembrane specifications, if you are interested in ,contact us with no hesitate. We will reply you immediately. Hope we build a flourishing long- lasting business.
Thanks.
Contact me for details
Shandong Tianhai New Materials Engineering Co., Ltd

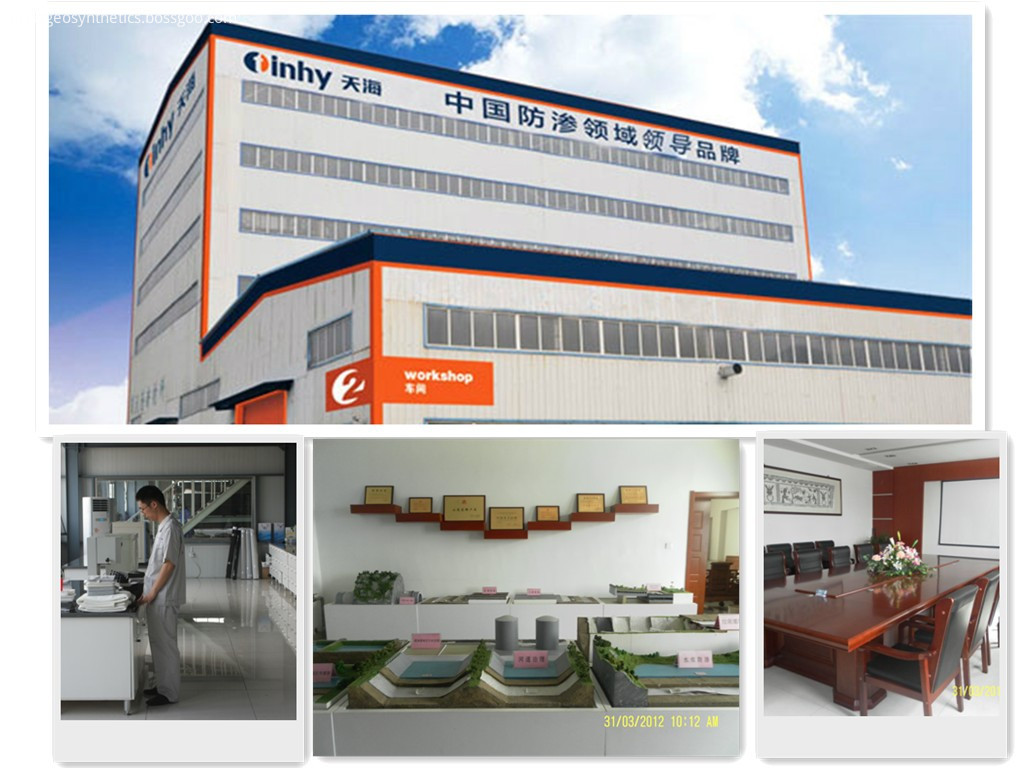

Shandong Tianhai New Materials Engineering CO., LTD was established in 2002, specializes in the production, R&D, application and construction of new engineering materials.
The company covers an area of more than 70,000 square meters with 110 million registered capitals, more than 325 staff, 21 various advanced production lines, who is the member unit of China Geosynthetics Engineering Association, China National Building Waterproof Association, China Plastics Processing Industry Association and Shandong Building Materials Industry Association.
The company has products of three categories, twelve series, hundred types, such as geosynthetic materials, matrixMD waterproof and drainage system, high polymer waterproofing materials and so on. The products are widely used in five fields: eco-environmental protection, irrigated agriculture, traffic engineering, municipal gardens, building waterproof.
Over the years, the company was awarded [China Famous Brand"[Shandong Top Brand" and [Famous Brand of Shandong Province". CRCC railways product certification, CQC environmental protection certification, the European CE certification, three management systems certification and AAA credit rating certificate has been acquired. The company also has the self-support rights to import and export.
The branch of Tinhy has obtained the construction qualification of special professional seepage-proofing qualification and safety production license. There is a more than one hundred persons team of engineering construction, management and operation including project manager, national certified architect and professional welding technician. Various construction of environmental seepage-proofing could be contracted. The company has more than thousand of major seepage-proofing project and earn a good reputation as the leading brand in anti-seepage field in China.
